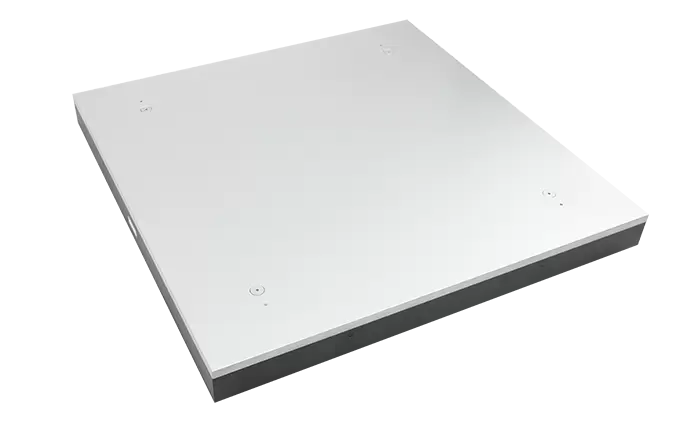

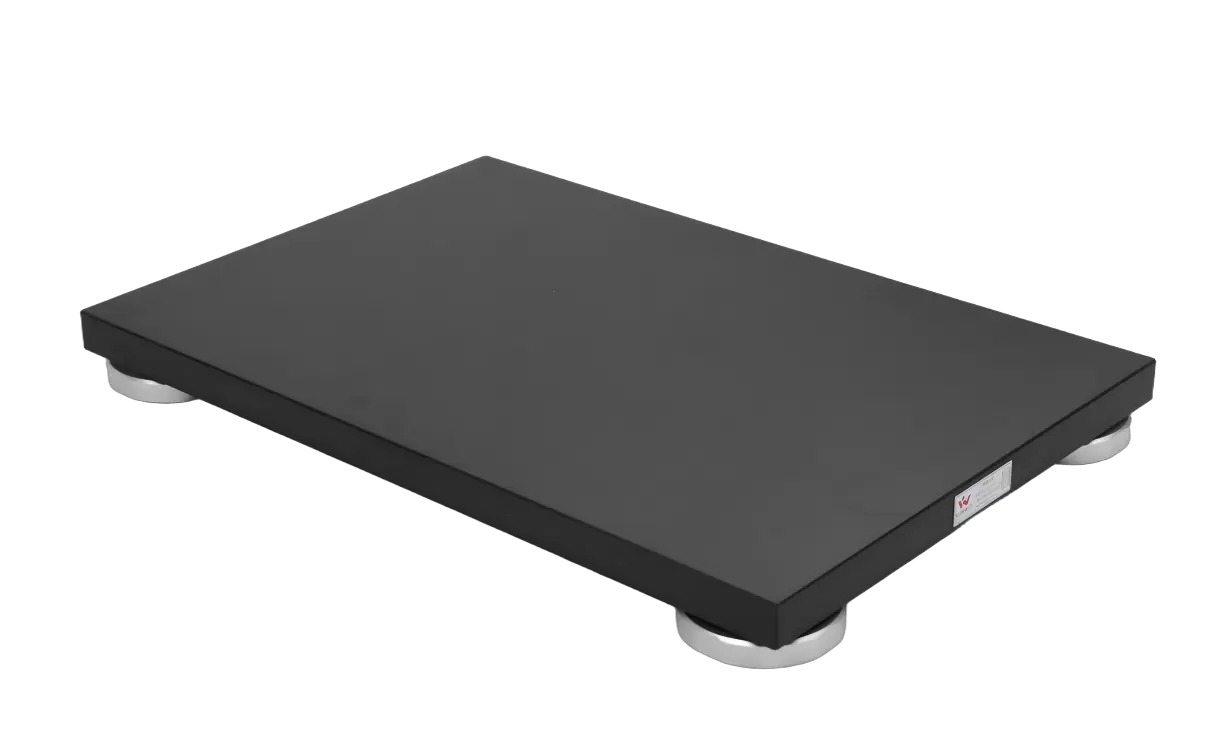

Portable digital 3D force platform

KWFP6050-5K

A high-performance portable measurement system designed specifically for biomechanics research that can accurately measure dynamic indicators such as X/Y/Z triaxial force and torque.

Made of high-rigidity lightweight alloy plate, it has 4 built-in high-precision force sensors and an integrated high-performance data acquisition system.The overall structure is strong and lightweight, making it easy to flexibly deploy in laboratories and outdoor venues.Supports wide-band dynamic measurement, which can satisfy both static load analysis and high-speed dynamic mechanical feature acquisition.It provides professional solutions for various sports technology analysis, gait research and equipment testing, and is an ideal mobile measurement platform in the field of biomechanics research.

Online Consultation

Downloads

Features
Parameters
Introduction

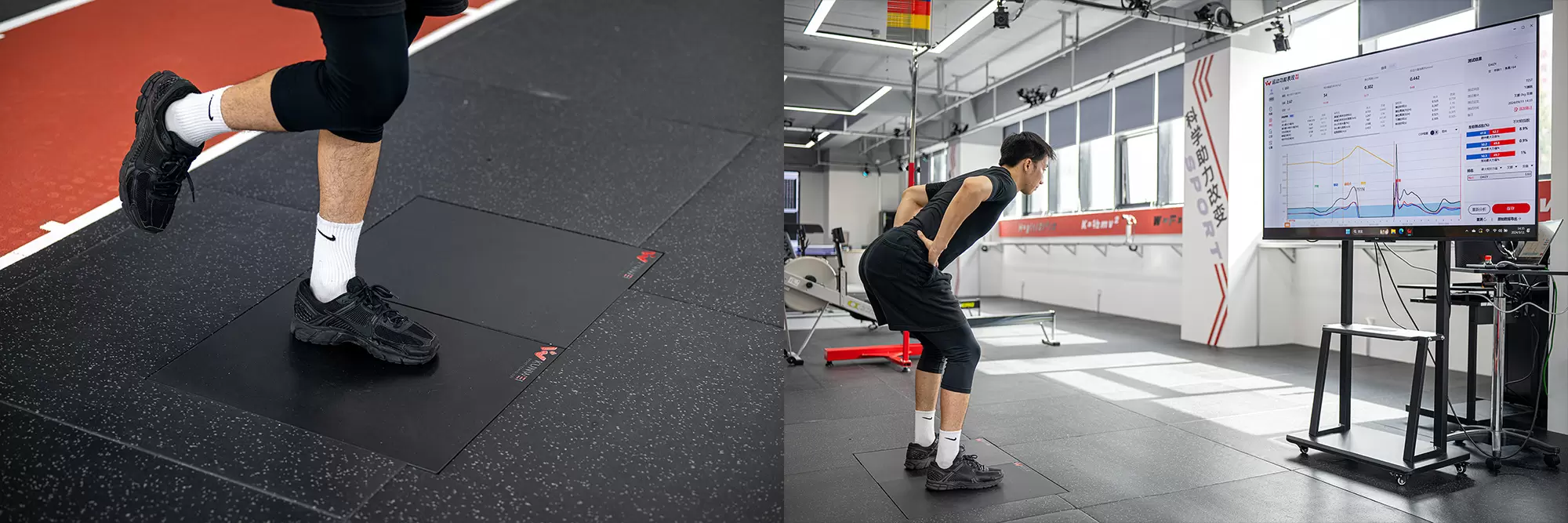

Application
Related Products

Features

Portable design
The compact and lightweight structure combines mobility and stability for installation. It can quickly complete equipment deployment in laboratories or outdoor sites, and achieve seamless switching between fixed and mobile test modes.
Accurate dynamic measurement
It uses advanced three-dimensional force decoupling technology to ensure high accuracy of mechanical measurements, and has high-frequency sampling capabilities, which is suitable for precise analysis in dynamic processes.
Synchronous linkage acquisition
It realizes multi-device collaboration, supports flexible networking configuration, ensures high-precision data synchronization acquisition of multiple force platform systems, and meets the needs of collaborative work in complex testing scenarios.
Precise timing control
Compatible with the synchronization trigger function of external devices to improve the timing consistency of each link of the experiment. It is suitable for scenarios with high-precision synchronization requirements such as gait research and motion analysis.
Long-lasting battery life
Innovative dual-mode power supply design and built-in high-capacity battery support long-term outdoor operation, solving the testing problems in power-free environments and greatly expanding the range of experimental site choices.
Customized service system
We provide personalized customization solutions from hardware configuration to software functions, and carry out special optimization according to users' special needs to ensure that the equipment is perfectly matched with various research objectives.

Parameters

size	mm	600 x 500
weight	Kg	12
thickness	mm	50
Crosstalk detection under three-dimensional joint synchronous loading	%FS	0.5
Maximum range Fx; Fy; Fz	N	2500; 5000
Overload capacity	%FS	300
Natural frequency fn(x, y); fn(z)	Hz	300; 200
Linearity	%FS	≤±0.3

Hysteresis	%FS	≤0.3
Accuracy	%FS	≤0.3
Sampling resolution	Bit	twenty four
Maximum sampling frequency	Hz	2400
Output Type	/	number
interface	/	Ethernet
Data Acquisition Card	/	built-in
Is there a synchronous trigger interface?	/	yes

Introduction

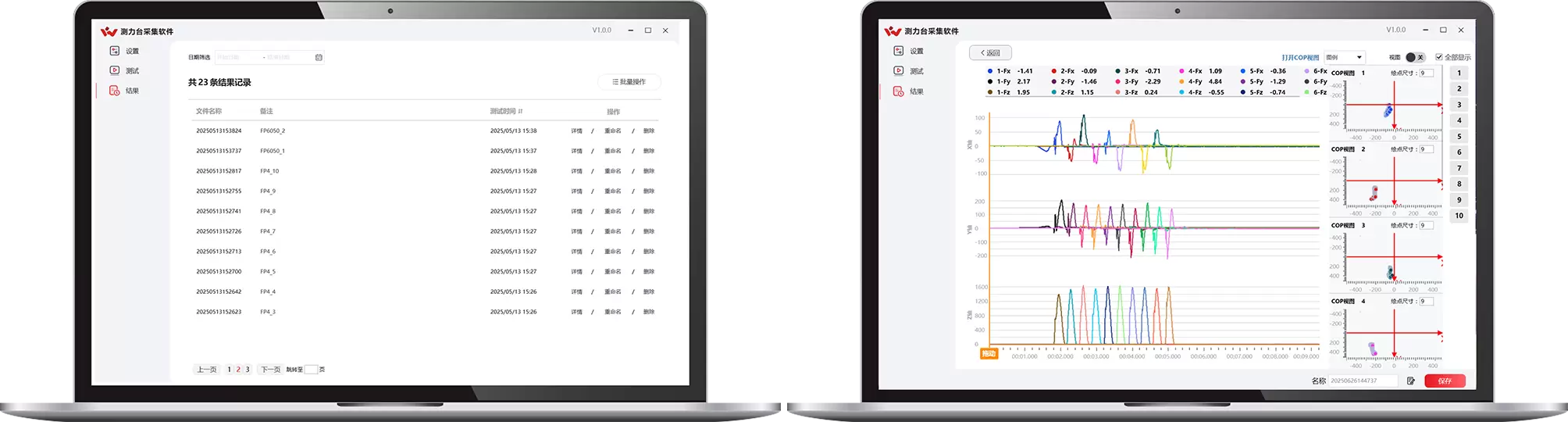

The force plate acquisition software (KWinForce) is a lightweight core data acquisition tool for all types of users. It can be operated without logging in, which greatly reduces the threshold for use and facilitates rapid deployment and basic experiments. The software is compatible with various models of three-dimensional force plates. The equipment management and parameter settings are intuitive and simple. It supports flexible display of multi-dimensional data and dual-view mode switching. It can save data and export CSV and C3D standard formats with one click, achieving seamless compatibility with third-party tools. It focuses on stable and reliable data acquisition services with streamlined processes. It is suitable for rapid force monitoring scenarios in the fields of sports biomechanics, industrial testing, etc., providing users with efficient and convenient data acquisition experience.
